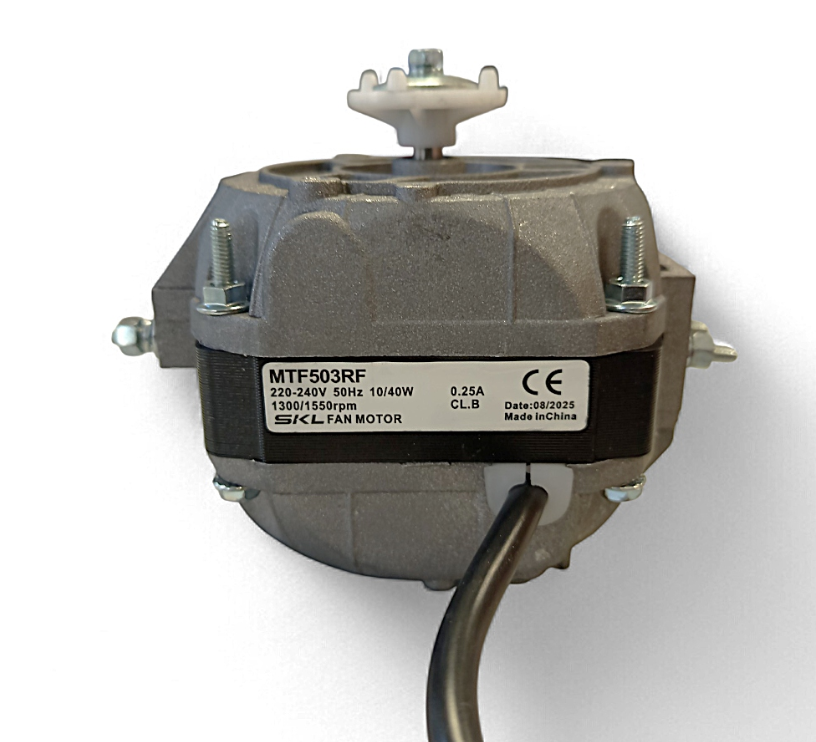

SKL Fan Motor MTF503RF 10W – Universal for Refrigeration and Air Conditioning
The universal SKL AC motor MTF503RF with a power of 10W is a reliable solution for applications in refrigeration, air conditioning, and ventilation systems. Thanks to its compact dimensions and universal mounting system, it can be used in most traditional heat exchange systems.
Equipped with copper windings, it ensures stable and efficient operation and long service life. The aluminium housing effectively protects components and supports heat dissipation. The motor is adapted to operate in a wide temperature range, making it an ideal choice for both standard and demanding working conditions.
Key Advantages:
✔ Universal application in refrigeration and ventilation systems
✔ Copper windings – higher durability and reliability
✔ Compact dimensions – fits many devices
✔ Solid aluminium housing
✔ Stable operation at speeds of 1300–1500 RPM
✔ Wide operating temperature range (-25°C to 50°C)
✔ Protection class IP42
✔ Universal mounting system – easy installation
Technical Specification:
- Voltage: 220 V
- Frequency: 50/60 Hz
- Rated power: 10 W
- Input power: 40 W
- Rotational speed: 1300 / 1500 RPM
- Protection class: IP42
- Operating temperature: from -25°C to 50°C
Additional Information:
Maximum fan blade diameter:
- 230 mm (up to 25° angle)
- 250 mm (up to 22° angle)
Applications:
The motor is ideal for use in:
• cold rooms
• evaporators and condensers
• air conditioning devices
• ventilation systems
• refrigeration showcases and cabinets
